Products >> Circuit breaker >> MCCB

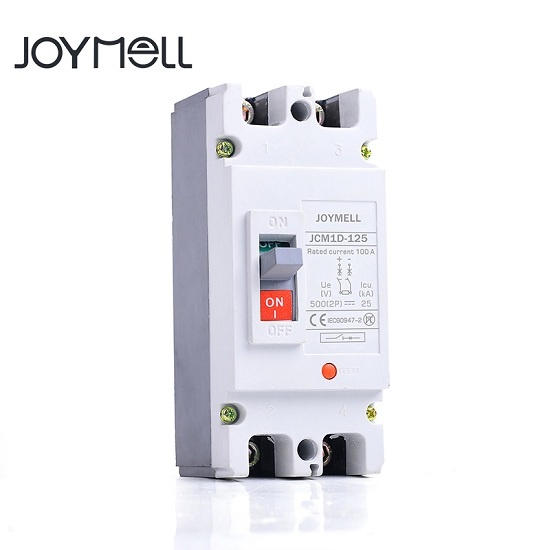

DC MCCB 2P 500V 6A-125A
- Product No.：2021527144157
DC MCCB 2P 500V 6A-125A
| JCM1D-125 | ||||
| Poles | 2Pole/3Pole/4Pole | |||
| Rated current In(A) | 16,20,25,32,40,50,63,80,100,125 | |||
| Rated operating voltage Ue(V DC) |
550V 750V 1000V 1500V |
|||
| Rated insulation voltage Ui(V) | 1500V | |||
| Uimp(kV) | 8kV | |||
| L | M | H | ||
| Breaking capacity(kA)Icu | 250V | 25 | 35 | 50 |
| 500V | 25 | 25 | 50 | |
| 750V | 25 | 15 | 50 | |
| 1000V | 25 | 10 | 50 | |
| Mechanical life | Times | 7000 | ||
| Electrical life | Times | 2000 | ||
| Breaking times(ms) | 20 | |||
| Protection grade | IP20 | |||
| Standard | IEC60947-2, IEC60947-1, GB14048.1, GB14048.2 | |||
