Products >> ATS changeover switch >> ATS 6A-63A

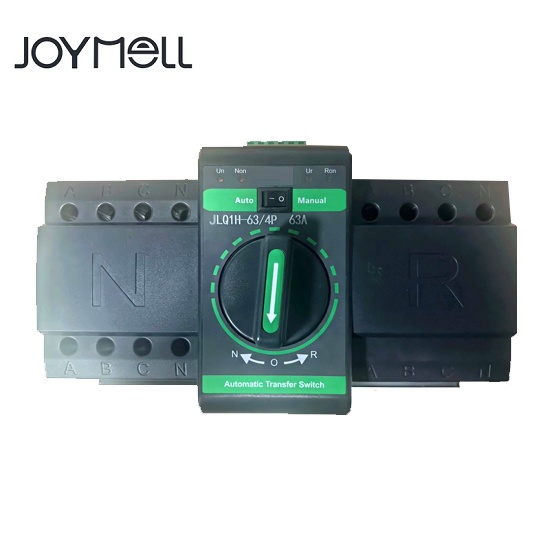

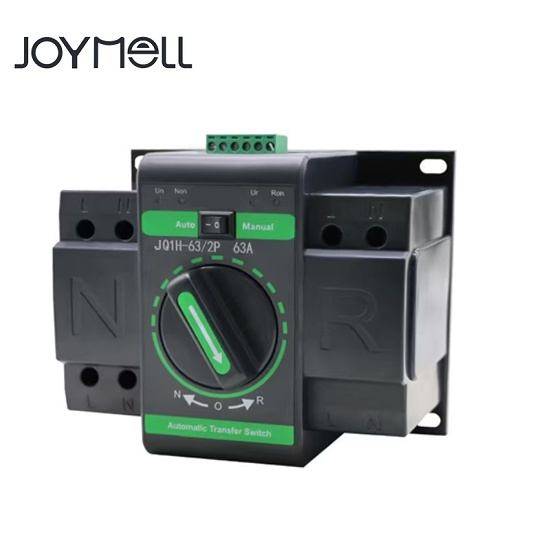

Mini MCB ATS Automatic transfer switch JQ1H-2P/4P 63A/125A

Summary:

1.Compact, good looking, with cover to protect mcb, make safer.

2. Many protections. Short-circuit protection, overload protection, short-phase, under-voltage protections（63A frame).

3 This product is a chain of electrical and mechanical interlock to ensure that the two Power supply can not supply at the same time

4. Low noise,easy install,stable.

5. 2in,1out, easy wiring.
6. Automatic and Manual operations optional.

JQ1H Automatic Transfer switch
Rated Current(A)	1,2,3,4,6,10,16,20,25,32,40,50,63,80,100,125
Rated Voltage (V)	220V/2Pole, 400V/4Pole
Pole	2Pole, 4Pole
Frequecy	50/60Hz
Breaking Capacity	4.5kA
Catagory	1A-63A (CB type), 80A/100A/125A (PC Type)
Connection	2In-1out
Protection grade	IP20
Standards	IEC/EN 60947-6-1
