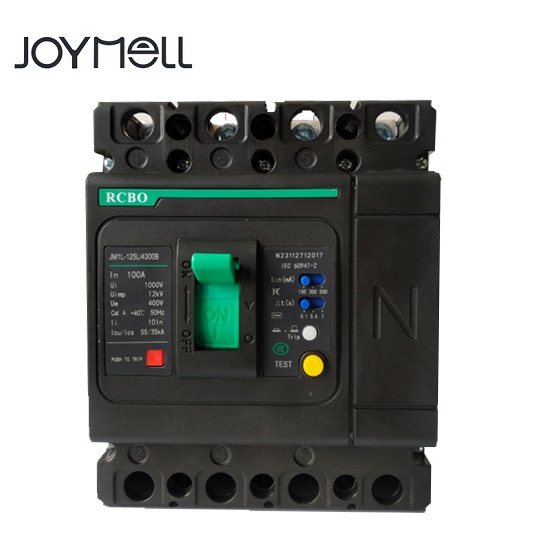

JM1L RCBO Circuit breaker 4P 16A-800A

JM1L RCBO
Frame		125H		250M	400M	630/800M
Pole		2P/3P/4P/3P+N		2P/3P/4P/3P+N	3P/4P/3P+N	3P/4P/3P+N
Rated current In (A)		16/20/25/32/40/50/63/80/100/125		100/125/160/ 200/225/250	225/250/315/ 350/400	400/500/630/ 700/800
Rated Voltage Ue		380/400/415V
Rated Insulation voltage Ui		1000V
Rated Impulse withstand voltage Uimp		12kV
Rated limit short-circuit breaking capacity Icu (kA)		55		55	65	65
Rated operating short-circuit breaking capacity Ics(kA)		50		50	50	50
Life circle	Electric life	1500		1000	1000	1000
	Mechnical life	8500		7000	4000	4000
Arc distance（mm)		≯ 50		≯ 50	≯ 100	≯ 100
Rated residual operating currentI△n(mA)			100/300/500			300/500/1000
Rated residual inactive currentI△n(mA)			1/2I△n
Rated residual short-circuit turn-on capacityI△n(mA)			1/4Icu
Protections			Earth-leakage protection, Over-load protection, Short-circuit protection, Ground-fault protection
Standards			IEC 60947-1,IEC 60947-2,IEC 60947-4,IEC 61009
