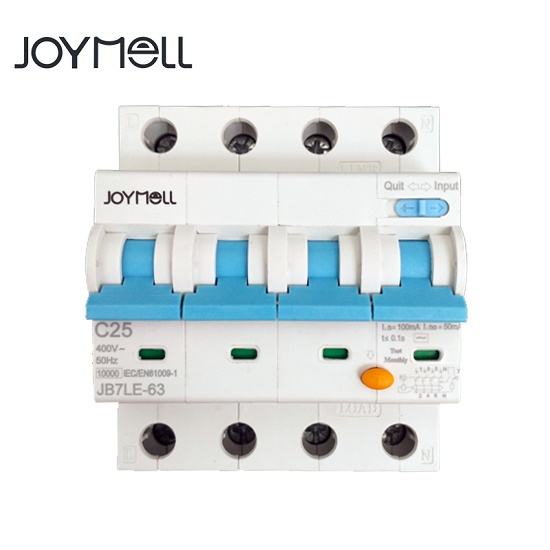

JB7LE 4Pole RCBO 30mA/100mA/300mA

*Short circuit protection

*Overload protection

*Leakage protection

*Control function

*Isolation function

*Leakage with on/off buttion

*IEC/EN: 61009-1

* Type AC, Electronic, breaking 6kA/10kA

JB7(s)LE-63
Rated frame current	63A
Rated current(A)	1/2/3/4/6/10/16/20/25/32/40/50/63A
Rated voltage(V)	AC240V/AC400V(1P+N),AC400V(3P+N)
Tripping curve	Type AC
Poles	1P+N (JB7(s)LE), 3P+N(JB7LE)
Width	18mm/pole
Rated residual operating current	10,30,100,300mA
Rated insulation voltage Ui	500V
Rated impulse withstand voltage Uimp	4kV
Rated breaking capacity	6kA
Environment temperature≤35℃)	-5℃~+40℃
Protection level	IP20
Wiring capacity	25mm2
Install	DIN35 steel mounting rail
Standards	IEC/EN61009-1
