Products >> PV Connector >> MC4 Connector

  • Solar PV MC4 Panel connector DC1000V 30A
  • Solar PV MC4 Panel connector DC1000V 30A
  • Solar PV MC4 Panel connector DC1000V 30A
Solar PV MC4 Panel connector DC1000V 30A Solar PV MC4 Panel connector DC1000V 30A Solar PV MC4 Panel connector DC1000V 30A

Solar PV MC4 Panel connector DC1000V 30A

Solar PV MC4 Panel connector DC1000V 30A

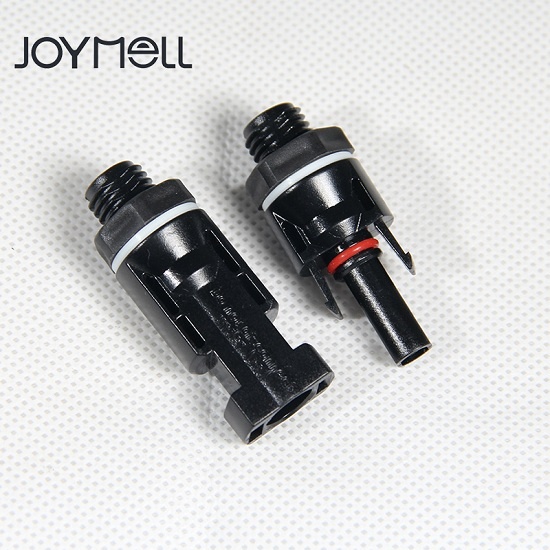

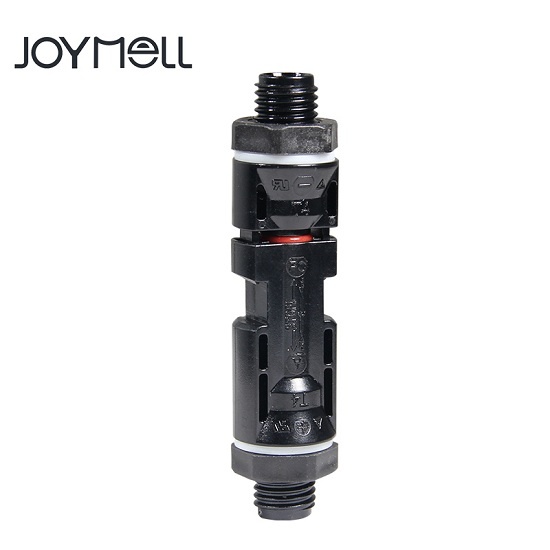

Panel MC4 Solar PV Connector
Rated current(A) 30A(2.5-6mm2)
Rated voltage(V DC) 1000V
Contact material Copper, Ag plated
Insulation material PPO
Protection grade IP2*/IP67
Flame class UL94-VO
Suitable cable OD4.5-8.5(2.5-6mm2)(AWG14-10)
Safety class II
Insert/withdraw force ≤50N/≥50N
Temperature range -40~+125
