Type 1+2 T1+T2 Class B+C Class I+II Surge Protection Device AC SPD 12.5kA Type 1+2 T1+T2 Class B+C Class I+II Surge Protection Device AC SPD 12.5kA Type 1+2 T1+T2 Class B+C Class I+II Surge Protection Device AC SPD 12.5kA Type 1+2 T1+T2 Class B+C Class I+II Surge Protection Device AC SPD 12.5kA

Type 1+2 T1+T2 Class B+C Class I+II Surge Protection Device AC SPD 12.5kA

B+C Class I+II Surge Protection Device AC SPD 12.5kA

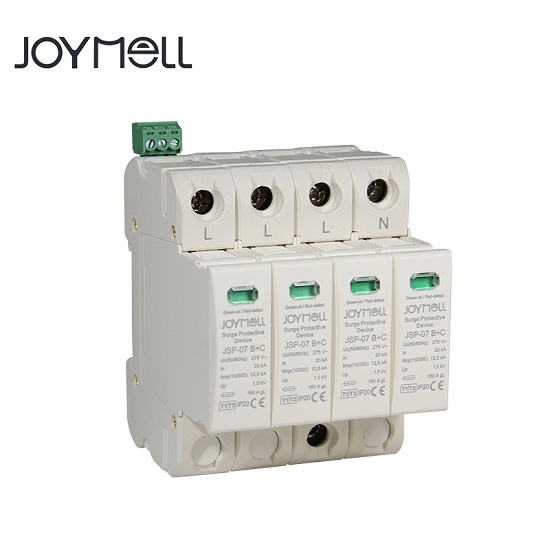

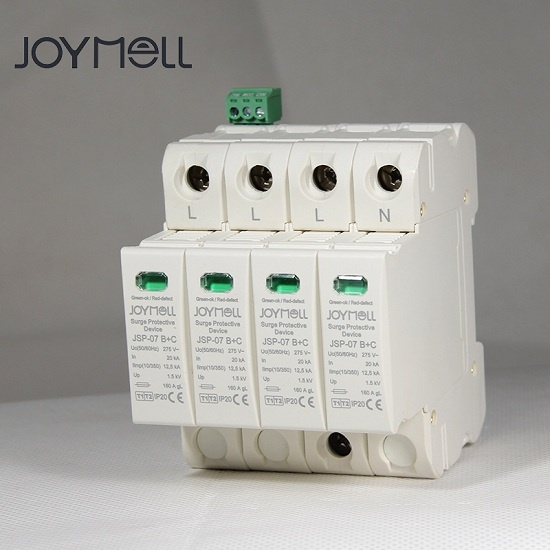

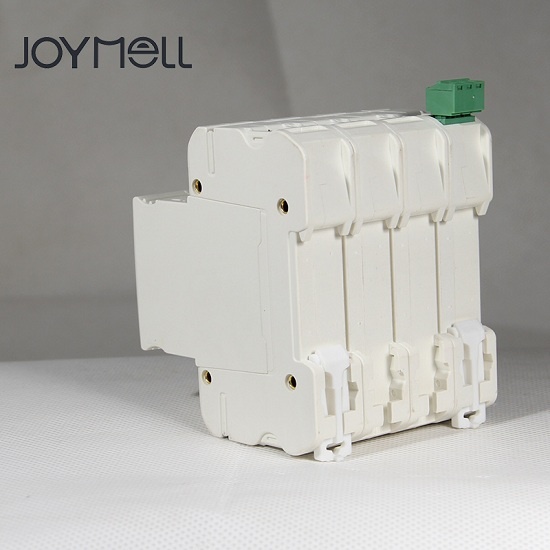

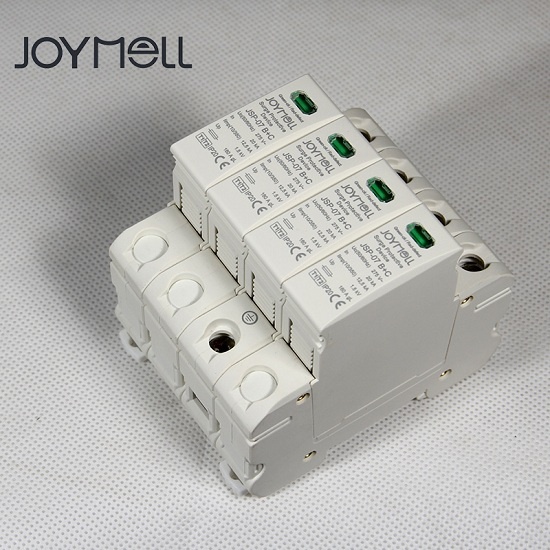

JSP-07 B+C T1+T2 Surge protector

Pole 1P+N 2P 3P+N 4P
Rated working voltage Un(V) 275V/385V
In(8/20us)(kA) 20 20 20 20
Imax(8/20μs)(kA) 40 40 40 40
Limp(10/350μs) 12.5kA
Protection area Class B+C / Type I+ II
Up(L-N)(kV) 1.5kV
tA 25ns(L-N), 100ns(N-PE)
Max fuse current 125A gl/gG
Install 35mm Din-rail
Protection grade IP20
Signal contact Optional
Standards IEC61643.1, GB18802.1
